Technical Specifications
• Model: FM100T / FM120T
• Bale Size: 1100 × 750 × 950 mm (Length × Width × Height)
• Baling Material: Waste Paper, Old Clothes
• Bale Weight: Approx. 500 kg (Depends on Material Density)
• Motor Power: 22.5 kW (380 V)
Hydraulic Cylinder (Twin Cylinder):
• Outer Diameter — 180 mm
• Inner Diameter — 160 mm
• Stroke Length — 1500 mm
• Machine Weight: 1600 kg
• Hydraulic Oil: No.68 / No.46
• Machine Size: 1850 × 2000 × 3500 mm (Length × Width × Height)
• Automatic bale ejection: Yes
________________________________________
Description

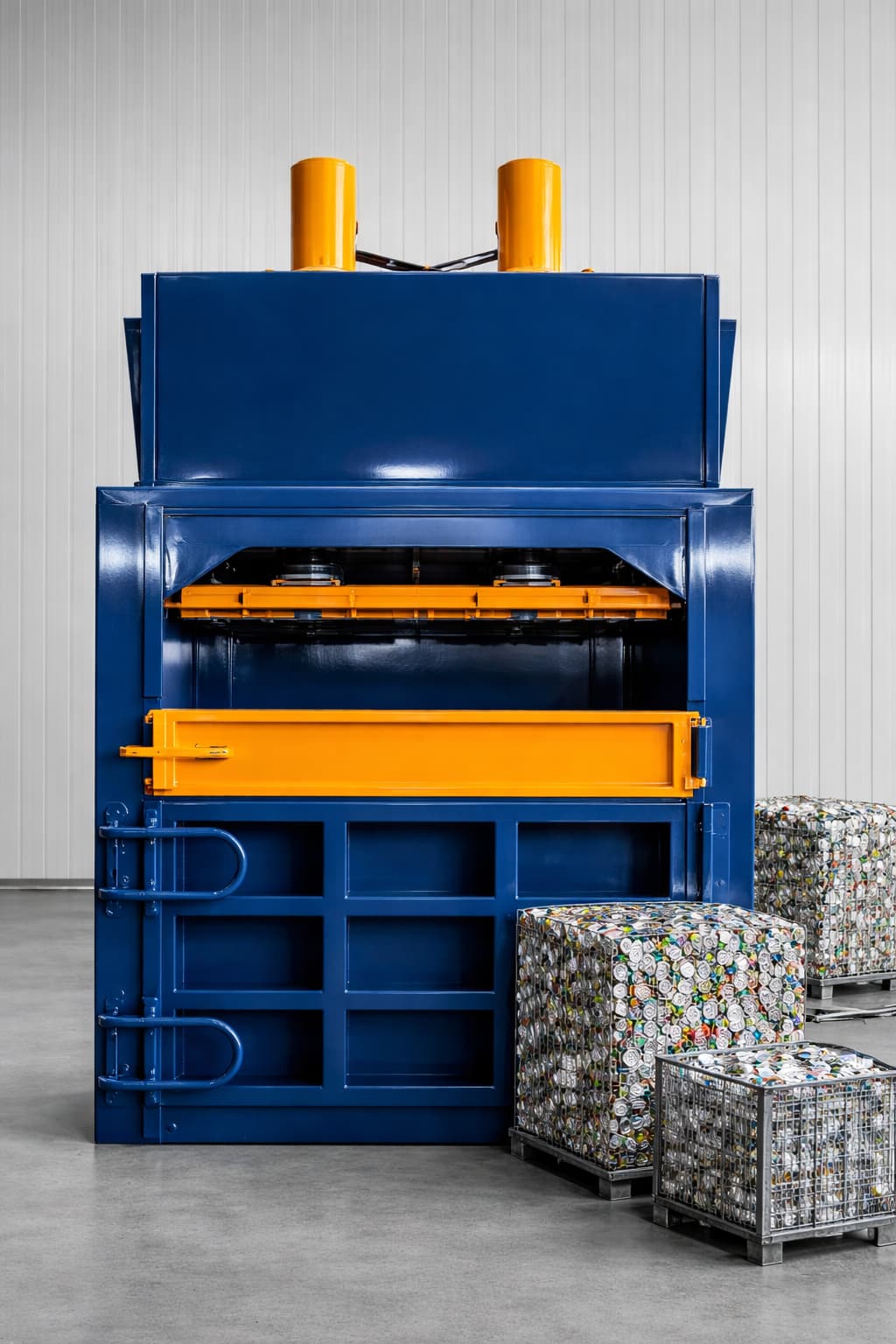

The FM100T / FM120T is a heavy-duty industrial-grade vertical hydraulic baler designed to compress very large volumes of waste to maximum density. Powerful twin-cylinder hydraulics and an extended stroke length ensure the production of particularly dense and heavy bales. The automatic bale ejection function reduces operator effort and increases process productivity.
________________________________________
Areas of application
• Large-scale waste paper recycling
• Heavy-duty textile waste baling
• Large waste sorting centers
• Large logistics hubs
• Recycling plants
_________________________________________
Main advantages
• Maximum pressing force
• Heavy bales up to ~500 kg
• Powerful two-cylinder hydraulics
• Increased stroke length (1500 mm)
• Automatic bale ejection
• Heavy-duty industrial design
• Readiness for continuous intensive work
________________________________________________
Why is it necessary
If your enterprise works with large-scale waste and needs maximum compaction with minimal human resources, FM100T / FM120T is a professional, highly efficient and long-term solution.
________________________________________
📌 Customization: The specified parameters are for reference. Individual configuration of the machine is possible according to your requirements.
